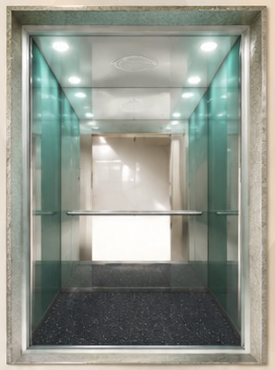

MCS1
Modular Car System
- Up to 24 Passengers
- Speed up to 2 m/s
- EN 81-1 Compliant
- Customisable & Flexible
German Technology • Designed for India
Elevate Your Lifestyle with German Precision
Quartz‑i Home Elevator by Wittur
IS 15259 compliant | Single phase power | Zero hassle installation
The smartest choice for villas, duplex/triplex penthouses and G+6 buildings. Silent, safe, senior-friendly and fully customisable – with lift licence approval made easy.
6 kVA
Inverter-ready single phase
Ultra-silent
Gearless + VVVF drive
IS 15259
Licence & permits ready
Core Message
“German Precision. Indian Compliance. Zero Hassle Home Elevator.”
Key Features
Designed for comfort, accessibility, customization, and long-term reliability.
Flexibility
Fits civil/structural shafts with minimum disruption.
Ride & Comfort
Ultra-smooth start/stop with silent operation.
Accessibility
Wide doors, reachable buttons, handrails, ARD support.
Customization
Colours, stainless finishes, glass cabins/doors, panels.
Quartz‑i Advantages
Practical engineering that improves comfort, efficiency, installation speed, and compliance.
Energy
LED lights, reduced energy consumption, standby optimization.
Comfort
Gearless machine + integrated VVVF drive for quiet travel.
Quick install
Optimized packing, manuals, plug-and-play controllers.
Compliance
IS 15259 + National Building Code alignment.
Stellar Door Features
Reforged, reinvented, and reborn with advanced durability, seamless installation, and long-lasting performance.
IS17900 Compliant
Built to meet IS17900 standards for enhanced safety, reliability, and quality assurance.
2 Million Life Cycle
Engineered for high-performance operation with an extended lifecycle of up to 2 million cycles.
Effortless Installation
Designed for quick and smooth installation, minimizing downtime and simplifying setup.
Enhanced Durability
Reinforced construction ensures superior strength, long-term durability, and dependable performance.
Visualize your perfect elevator with our interactive 3D experience
Elevator Options
Choose the right structure type based on your space, aesthetics, and site conditions.
Quartz – i Ascend
Quartz - i Elevate
Quartz – i Pinnacle
Specifications Overview
QUARTZ‑I is designed to fully comply to Indian Standards and Codes.
Designed to fully comply to Indian Standards and Codes
IS 15259 compliance summary
| Specification | Details | IS 15259 |
|---|---|---|
| Capacity | 4p | |
| Load, Kg | 272 | |
| Speed, mps | 0.15 & 0.2 | |
| Stops | 4 | |
| Travel, mtr | 12 | |
| Low pit, 300mm | Mechanical Stopper |
Quartz-i Feature Comparison
Choose the right variant for your needs
| Features | Quartz - i Ascend | Quartz - i Elevate | Quartz - i Pinnacle |
|---|---|---|---|
| Dual Emergency ARD | Yes | Yes | Yes |
| Fire Rated Doors | Yes | Yes | Yes |
| Manual Rescue (Pull lever) | Yes | Yes | Yes |
| Self Lubricating Ropes | Yes | Yes | Yes |
| Speed | 0.4m/s | 0.4m/s | 0.4m/s |
| Power Supply | 230 V | 230 V | 230 V |
| Capacity | 408 Kg | 408 Kg | 408 Kg |
| Cabin Size Max | W 1200 mm*D 1600mm | W 1200 mm*D 1600mm | W 1200 mm*D 1600mm |
| Machine Type | PMSM Gearless | PMSM Gearless | PMSM Gearless |
| Motor Warranty | 1 year | 5 years | 10 years |
| Cabin Finish Customization | Standard | Yes | Yes |
| Biometric Authentication | — | Password On COP | Facial Recognition |
| Smart Display | — | Yes | Yes |
| App Controlled | — | Yes | Yes |
| Custom User Interface | — | — | Yes |
| Alexa / Siri Interface | — | — | Yes |
| SOS Feature | — | — | Yes |
| Remote Diagnosis | — | — | Yes |
Specifications
Here is the corrected and properly organized version of the Specifications section.
Type
Machine-Roomless, Electric Traction Drive
Power supply
Single Phase 230V, 50Hz, 272kg-0.8Kw, 340kg-0.9Kw, 408kg-1.1kw
Machine
PMSM Gearless
Hoistway
Civil/Structural-customer scope
Controller
Integrated VVVF Drive
Cabin finishes
Mild Steel Powder coated / Stainless steel / Glass
Cabin height (below suspended ceiling)
2050mm
Doors
Center opening (C2) & Telescopic opening (T2)
Door Finishes
Mild Steel Powder coated / Stainless steel / Framed Glass Doors
LOP/COP
SS Face plate with Button-surface mount / Touch-Box type
Display (LOP/COP)
SS Face plate with Buttons - Dot Matrix & TFT Touch - TFT
Flooring
Stainless steel with LED spot lights
False ceiling
PVC mat / Recess (20mm/25mm)
Handrail
Optional
Infrared sensor
Full Height
Overload Indicator
Provided
Intercom
2 way
Automatic Rescue Device
Provided
Emergency Light
Provided
Wheel Chair access
Optional
Floor Announciator
Optional
Levelling Accuracy
+/-5mm
Technical Data Controller
Built for quick installation and easy diagnosis.
- Compact and slim service panel
- Service Controller beside the top landing door in SS finish
- Shaft Controller inside the shaft on top floor
- Automatic evacuation function with indication on COP
- Down collective, full collective (Optional)
- The Plug-and-play controller with CAN-bus-technology for quick installation
- Pre-wired travelling cable
- Landing operation panels and car operation panels pre-wired and plug-in-type
- Automatic car light off
- Hand held terminal for easy programming and diagnosis
- Automated testing (Daily/Weekly) of ARD
Drive Technology
Smooth performance with flexible entrance support.
- Field-oriented frequency Drive integrated into controller cabinet for a smooth drive
- Programming via graphical keypad directly connected to the controller
- Supports Single/Dual entrances (Through Car)
- Dual entrances can be operated independently
Cabins
Three cabin systems for residential and commercial installations.

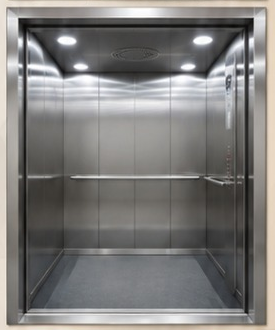

Winline
- Up to 10 Passengers
- Speed up to 2 m/s
- Multiple Design Options

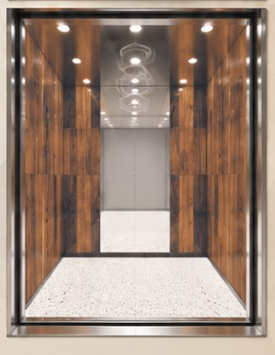

Majestik
- Up to 10 Passengers
- Speed up to 2 m/s
- Premium Finishes
Landing & Car Doors
Five door design options for landing and car applications.

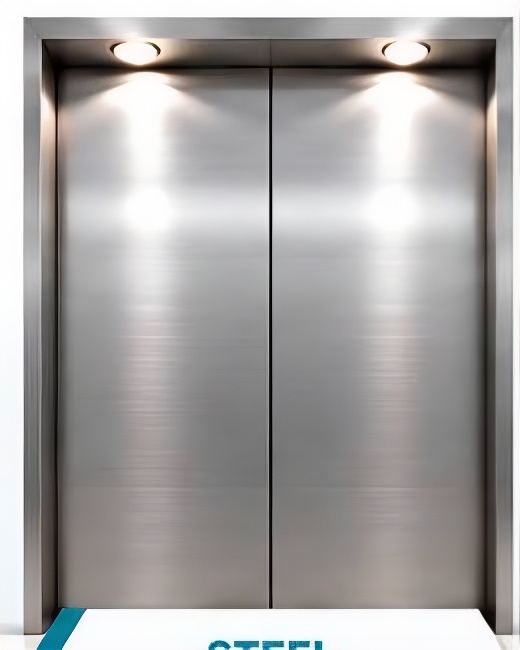

Steel

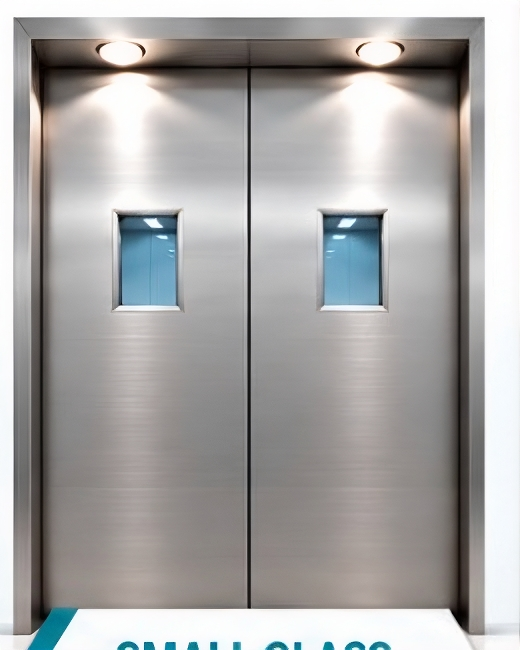

Small Glass
Large Glass

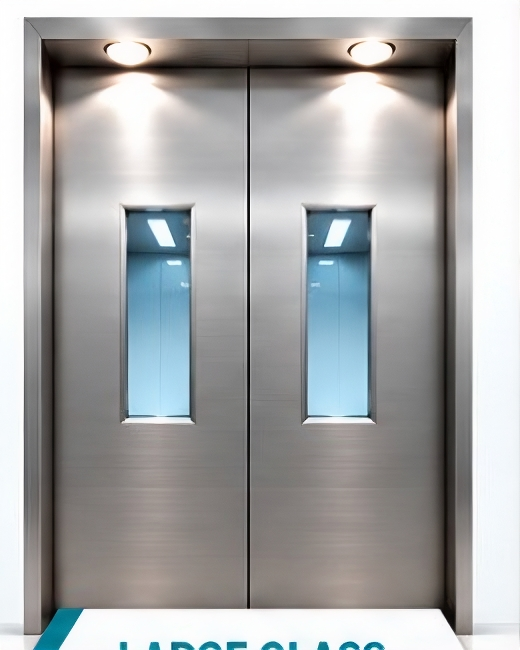

Half Glass

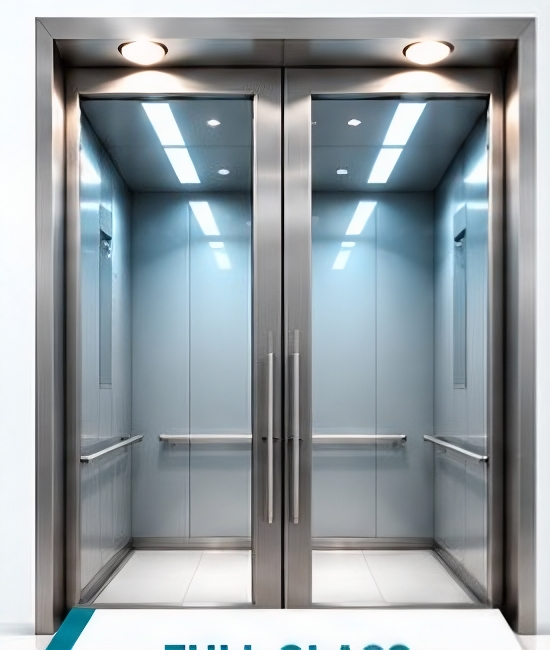

Full Glass
Cabin Finishes
QUARTZ‑I is designed to fully comply to Indian Standards and Codes.
Standard Finishes
RAL 7035H*
00304 - No. 4
304M
EXP01 Vertical silver
SP 074 - HCSS
Special Finishes
SP 003 - Golden Mirror
SP 011 - Leather
SP 020 - DL7E
SP 032 - Bronze No. 4
SP 034 - Bronze Mirror
SP 001 - Honey comb
SP 006 - Checks
SP 007 - Linen
SP 009 - Moon rock
SP 012 - Black mirror
SP 047 - Black hairline
*RAL 7035H not available in Suspended ceiling
**other finishes also available on request
Floor Finishes (PVC Floor Mat)
SP 025 - Wood finish
SP 026 - Shadow white
SP 027 - N Blue
Details & FAQ
Quick answers to common questions about installation, usability, and support.
Quartz‑i is designed to be installed in existing building architecture with minimum disruption (site feasibility applies).
The brochure highlights wide doors for wheelchair access, reachable buttons, handrails, and ARD support for peace of mind.
Quartz‑i is positioned as compliant with Indian standards including IS 15259 and National Building Code requirements (final compliance depends on local rules and installation conditions).
Want a site assessment & quote ?
Share your floor count, preferred cabin style, and city. Our team will guide you through feasibility and configuration.
